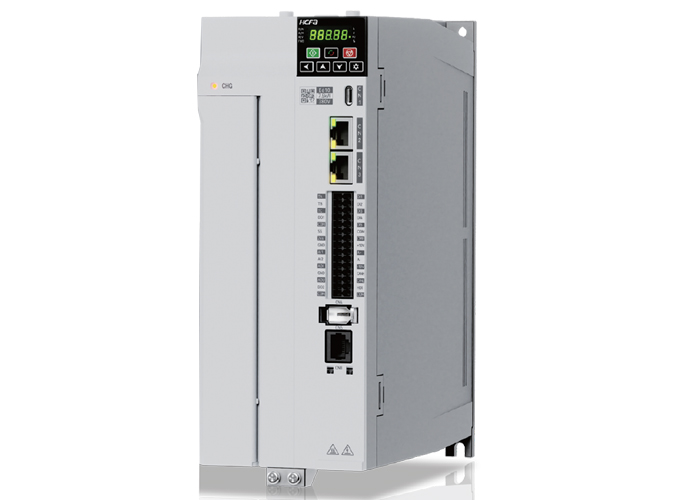

E600/E610 Inverters

Product Type: VFD Inverters Voltage
Specification: Three-phase 220V-380V
Coverage: 400W~7.5kW
Communication Bus : Modbus RTU、CANopen、Modbus-TCP Hardware interface: 5-way DI (Digital Input), including 1 high-speed input (100kHz), 2-way DO (Digital Output), each supporting 0–24 VDC / 0–50 mA, 2-way AI (Analog Input) : AI1 (0–10 V), AI2 (0–10 V / 4–20 mA), 1-way HDI (Highspeed Digital Input) : supporting 100 kHz pulse, 1-way AO (Analog Output) : AO1 (0–20 mA), AOU (0–10 V)

Input/output current specification: 0–50 mA
Input voltage specification: 0–10 V, -10 V to +10 V
Output voltage specification: 0–10 V Online Catalogue click here

Product Features

High Efficiency & Energy Saving

Advanced MCU control platform, equipped with advanced vector control algorithm, better driving capabilities for various motors commonly used in industrial application scenarios. Asynchronous motor, Synchronous motor, Reluctance motor, brushless motor

Powerful Function

High-performance MCU, combined with a new motor control algorithm, can meet the requirements of various types of motor control. Excellent motor weakening control algorithm + high-bandwidth vector control technology to achieve good control of high-speed motors (×4 weakening)

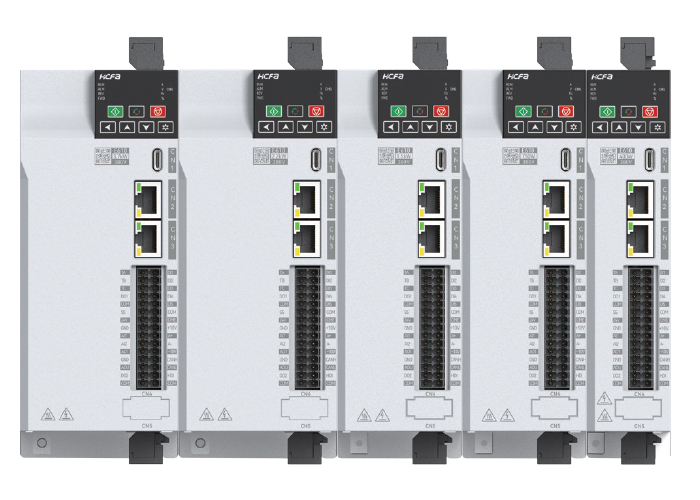

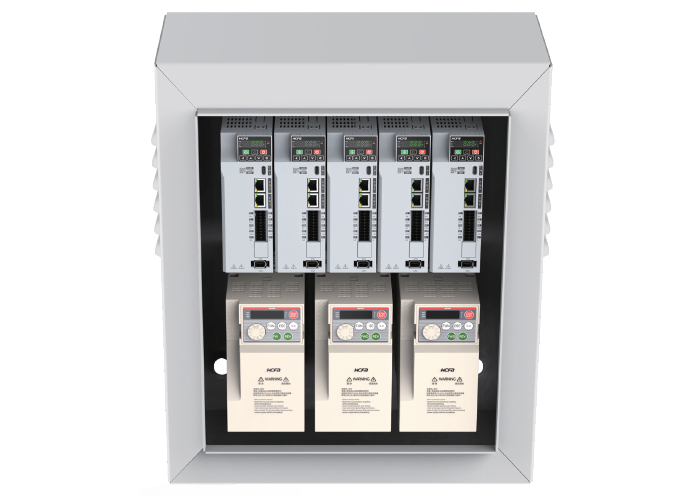

Book-shaped Design

Adopts a slim structure & its volume is reduced by more than 20% compared with the original models. The book-type design fully utilizes the cabinet space & reduces the cost of using the cabinet.

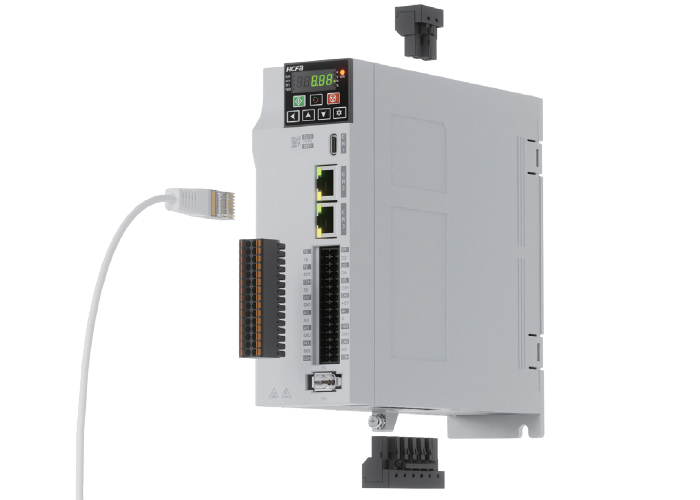

Flexible Expansion

Simple overall layout, with plug-in expansion devices. Supports the use of function expansion card and PG expansion card at the same time. Hardware modular design, external keyboard supports hot swap
